Response time

 t90 (s) from 20.9%to 0% O ₂

< 15

Zero current

μA in N 2

< 2

Pressure sensitivity

(% change of output)/(% change of pressure) @ 20kPa

< 0.1

Linearity

 % O 2 deviation @ 10% O ₂

0.6

Hysteresis

 % O 2 change after 16 cycles: 0 to 20.9% O ₂

 < 0.15

Hand aspirator

% O 2 change during aspiration (typical)

 19.5 to 22.5

response

Operating life

months until 85% original output of 20.9% O 2

> 24

CO₂  sensitivity

% (change O 2 reading) / % CO 2   @ 5% CO 2

0.1

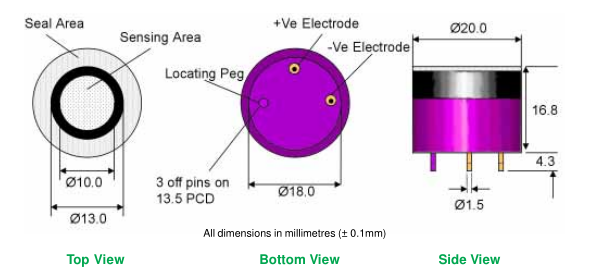

Height

mm (including foam ring)

16.8

Weight

 g

< 16

Pressure range

kPa

 80 to 120

Humidity range

% rh continuous (0 to 99% rh short term)

 5 to 95

Storage period

 months @ 3 to 20°C (store in sealed pot, open circuit)

6

Load resistor

 ? (recommended)

47 to 100
